Van Compass Large Tire Fender Relocation Kit for 2020 Revel (2019+ Sprinter VS30)

VAN COMPASS MERCEDES SPRINTER 2019+ BIG TIRE MUDFLAP BRACKET RELOCATION KIT (2019+)

The ability to fit larger tires for off-road use became much more limited on 2019 (VS30) as Mercedes decreased the size of the wheel well. Fitment of anything bigger than a 245/70/17 tire will rub the inner fender liners or pinch seam on the van. Even with VC 2” Striker lift kits, the ability to run a larger tire is hindered without addressing the small wheel openings.

Van Compass developed a cost-effective, simple solution to solve this problem. The Big Tire Mudflap Bracket Kit allows fitment of up to a 35 x 12.5 x 17” tire on a 4x4 van equipped with our 2” Striker Lift Kit. 2wd vans can easily clear up to a 285/70/17 tire when paired with our 2” Striker lift system as well.

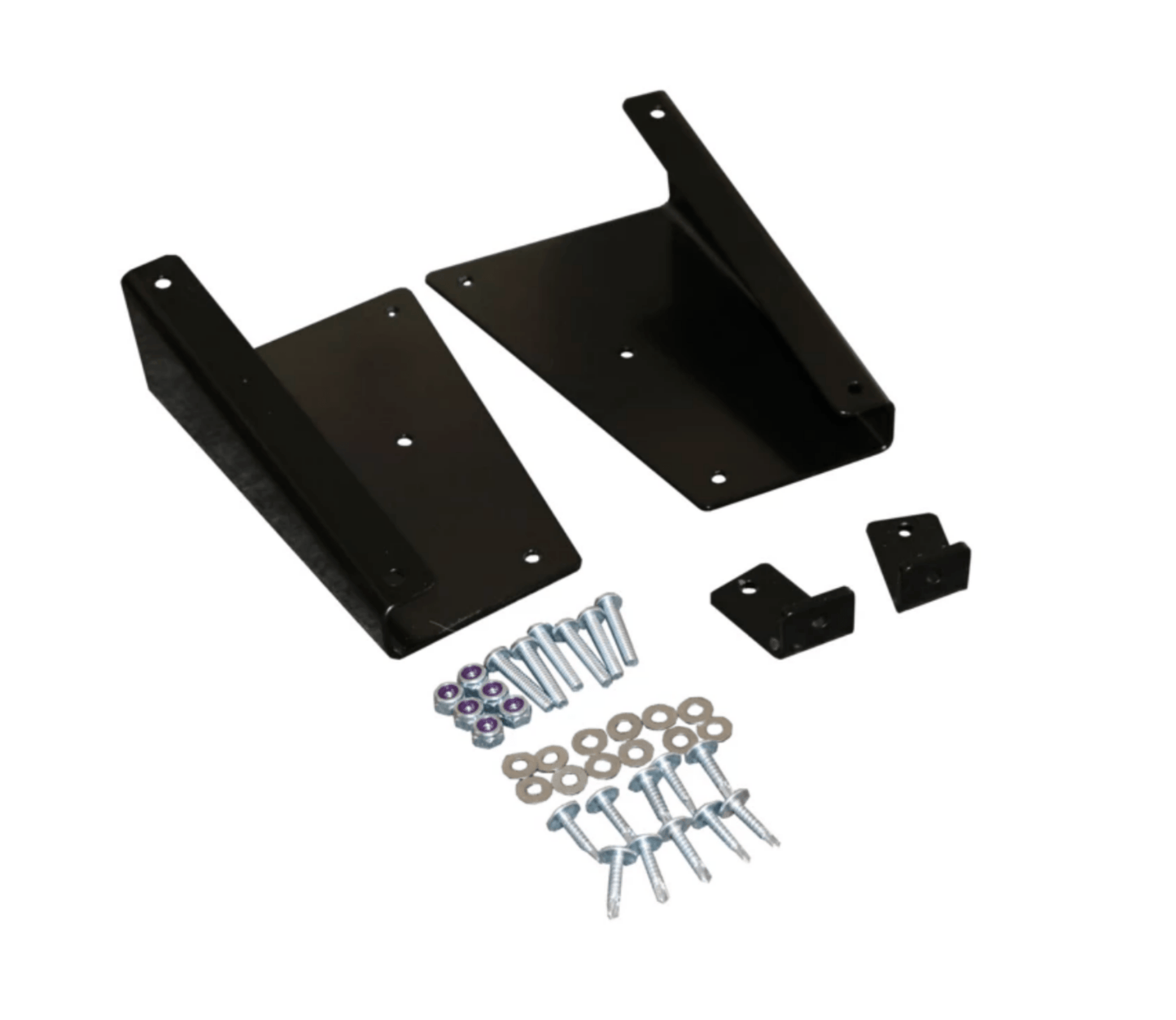

This bracket kit addresses not only the small front wheel openings, but it also provides a solution in the rear of the van to get some proper tires on your VS30 Sprinter van. The Big Tire Mudflap Brackets are made from laser cut & CNC formed steel plate that has been powder coated for a durable, long-lasting finish. Installation is simple and just requires cutting and trimming of the lower portions of the rear of the fender arches for a clean installation all while retaining the stock mudflaps for a near factory finished look.

As with all Van Compass products, all hardware to install the brackets is included as are detailed instructions to walk you through the install. Take a look at the instructions below for more detail on how this kit works and get big tires under your VS30 Sprinter.

Lead-Time: In Stock (ships in 1 week). This is an estimate and stock levels can change quickly.

One set works for all four wheels

Installation Cost (LABOR Only) at an Owl Road Center - $300
